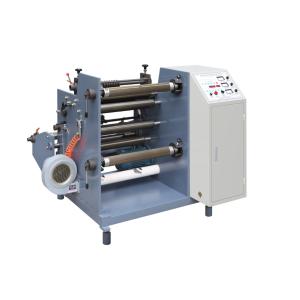

This machine slitting material from wide roll to small narrow rolls. It can cut different material, like paper, film, PVC , nonwven fabric and so on material.
Main features
1) 8 sets of round knife in the machine
2) Unwinding and rewinding controlled by magnetic powder brake and clutch
3) Use one photocell for web guide
4) Taper tension control
5) Have meter counting
6) Use frequency inverter to control the speed
Main Technical Specification:
| Max web width | 800mm |
| Max rewinding diameter | 500mm |
| Max. unwinding diameter | 600mm |
| Min width | 25mm |
| Power Supplier | AC380V, 3 phase |
| Cutting precision | 0.2mm |
| Cutting speed | 10-120m/min |
| Overall dimensions(L*W*H) | 1.6*1.2*1.4m |
| Machine weight | 700kg |
